Wallbox Electric Car Charger: Its Place in the Charging System

A "wallbox electric car charger" is one component in a layered charging world. It is the quiet AC workhorse that handles the hours a vehicle is parked, sitting beneath the faster DC tier that handles the minutes a driver is in a hurry. This guide looks at what the wallbox actually is, the power it spans, and the role it plays alongside DC across home, workplace and fleet.

What a Wallbox Electric Car Charger Is

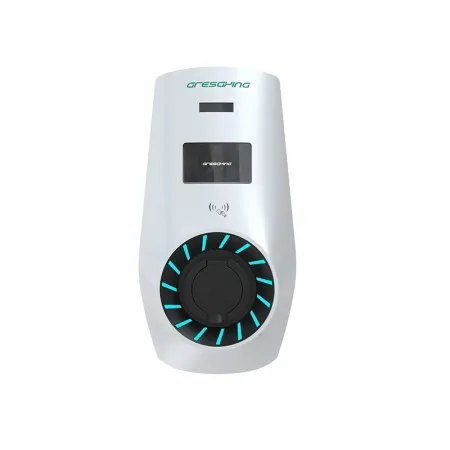

It is a fixed AC unit that mounts to a wall or pedestal and feeds protected alternating current to the vehicle's onboard charger, which performs the final conversion to DC. Compact, inexpensive to install and long-lived, it is the form most sites adopt first. Gresgying's wallbox overview and the Turbo Wallbox page describe the hardware that fills this role.

The Power Spectrum: 3.7 kW to 22 kW

The range is set by the supply and the vehicle, not by ambition. At the low end, 3.7 kW trickles a battery overnight on a constrained supply; at the top, 22 kW on three-phase adds serious range during a working day. Most of the daily mileage is won in the 7 kW to 11 kW band. Gresgying's AC charger guide explains the same spectrum in product terms.

The Role of AC as the Everyday Base Layer

Most vehicles spend far more time parked than driving, and AC wallboxes fill those hours cheaply. They avoid the heavy power electronics and grid impact of DC, spread load across the day, and suit batteries because slow charging is gentle on them. This base layer is where the majority of annual kilometres are actually added — the quiet majority of every charging plan.

Thinking in layers also helps with grid planning. Because AC wallboxes draw modest, predictable power over long periods, they are easy to shift into off-peak windows and easy to balance against local generation. A neighbourhood of home wallboxes charging overnight is a manageable load; the same energy delivered as DC during the day would stress the distribution transformer far more. This is why many network operators actively favour AC for the bulk of residential and workplace charging and reserve DC for corridors and hubs where speed is the whole point.

How It Complements DC Fast Charging

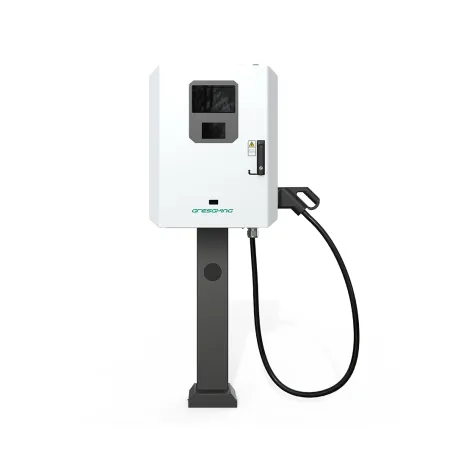

DC fast charging answers a different need — the en-route top-up in minutes. A site often pairs a few DC units for through traffic with a field of AC wallboxes for everyone parked longer. Gresgying's 22 kW AC unit shown at the London EV Show sits naturally beside a 30 kW DC charger, and the 120–180 kW DC station shows the upper tier the wallbox deliberately is not. The fast-charging solution page describes how the two tiers share a site.

Connector and Cable Arrangements

Type 2 is the dominant AC connector across Europe and Asia, with tethered and socket versions as discussed elsewhere. The cable rating must match the unit's output, and outdoor tethered builds protect the connector. The electric car charger guide covers connector choices for drivers directly.

Installation Requirements at a Glance

A wallbox needs a suitably rated supply, correct earthing, upstream protection (Type A RCD with DC leakage detection), and an enclosure rated for its location. Indoor is simple; outdoor needs IP54 or better. The home installation guide lists the practical checks, and the commercial wallbox safety standard covers what outdoor certification should include.

Applications Across Home, Workplace and Fleet

At home a single 7 kW point refills overnight. At a workplace, load-managed wallboxes serve a staff car park during the day. At a fleet depot, rows of AC points replenish vans and pool cars each evening — the AC layer of a fleet hub. Retail and destination sites add range as a convenience, often paired with a faster tier from the public fast-charging set. Each application is described in the relevant solution pages, including workplace charging.

The home case is the simplest and the largest by volume: one vehicle, one point, one overnight window, and a full battery every morning. The workplace case turns idle parking hours into fuel, often at no cost to the employer beyond the hardware and a modest supply. The fleet case is where the AC layer earns its keep at scale, because vans and pool cars return to base each evening and can be fully replenished on cheap AC rather than fast DC. Gresgying's solution pages map each of these onto concrete configurations, so the wallbox is never specified in isolation but as the right layer for the right site.

What to Confirm Before Ordering

Confirm the supply phase and spare capacity, the vehicle's AC acceptance, the connector type, the indoor or outdoor rating, and whether you need identification or billing. Getting these right up front avoids the most common and costly changes later. The EV charger station essentials article frames the same questions at network scale.

Conclusion

The wallbox electric car charger is the dependable AC base layer of any charging plan — cheap to install, gentle on batteries, and present wherever vehicles park for hours. It complements rather than competes with DC, and for most homes, workplaces and fleet depots it is where the real daily mileage is won. Gresgying's wallbox range covers the ratings and features to match each of those roles.
