Custom Wallbox Charger: How a Bespoke Project Runs

Brand owners, distributors and project developers often arrive with a clear commercial goal but an open technical question: what actually happens between "we want our own wallbox" and "units on the pallet"? A custom wallbox charger is not a single purchase; it is a short engineering programme with defined hand-offs. This guide walks the full chain — from the first requirement call to mass-production scheduling — and shows the input, output and usual bottleneck at each step, plus how the time and cost budget is really spent.

Step 1 — Requirements and Feasibility

A custom project opens with a brief, not a drawing. The input is commercial and qualitative: target market, volume forecast, target price band, the regulatory region, and any brand or channel constraints. The manufacturer then runs a feasibility study against its existing AC platforms — the output being a one-page project charter plus a feasibility report that flags electrical, thermal, mechanical and certification risks. The recurring bottleneck in this phase is a vague volume forecast, which makes the tooling decision impossible, and the non-standard voltage market — a region on 100V or 115V / 60Hz where a platform certified only for 230V single-phase needs a fresh electrical review before a sample can even be quoted.

Step 2 — Freezing the Spec and Building the Sample

Once feasibility is green, the specification is frozen and signed by both sides — the output is a locked sheet covering power, phase, connector, finish, firmware behaviour and packaging. With that locked, an engineering sample (an EVT unit) is built; the input is the approved drawing set, bill of materials and firmware baseline, and the output is a handful of prototypes plus a first pass at any bespoke moulded part. The classic bottleneck here is tooling lead time: a custom moulded front cover can take six to eight weeks on its own, which is why serious custom work starts the tool in parallel with the first sample build rather than after it.

Step 3 — Validation and Pilot Production

Prototypes are validated against the spec and the relevant safety standards. The input is the samples plus a test plan; the output is a validation report with electrical, thermal, ingress and EMC data, plus field notes from any pilot installation. The frequent bottleneck is EMC — a custom housing with a different screen or antenna layout can fail radiated emissions on the first pass, requiring a shielding or layout change before certification begins. After that, a pilot lot of a few hundred units runs on the actual line, yielding a trial batch, a line-yield report and confirmed packaging samples; the usual hold-up is component supply variance on a custom-colour housing or non-standard cable.

Step 4 — Mass Production Ramp and Scheduling

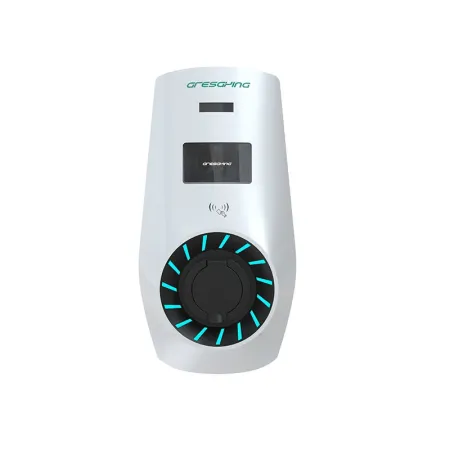

With the pilot accepted, the line ramps to volume. The input is a firm order sequence and deposit. The output is a production plan with weekly build quantities, an incoming-QC plan, and a finished-goods schedule tied to your freight forwarder. The last bottleneck is raw-material lead time for the custom elements — the bespoke colour and housing are often the longest items, so the schedule is built backwards from them. The platform approach behind the Turbo Wallbox family shows how one base unit supports several regional variants without restarting the line each time.

Where Custom Projects Stall

• Unfrozen scope: Adding features after sign-off is the single most common cause of delay, because every downstream step assumes the spec is locked.
• Certification mismatch: Assuming a platform certified elsewhere covers your market leads to a late and expensive re-test.
• Single-source custom parts: A unique housing or cable that only one supplier can make becomes the critical path the moment volume rises.

The Time and Cost Budget

MOQ, Customization Depth and Compliance

Customisation depth and minimum order quantity move together. Light changes — a logo, a colour, a language on the manual — ride on an existing platform and keep the MOQ low. Structural changes that need a new mould push the MOQ up because the tool cost must be amortised across the run. In a custom programme the manufacturer typically holds the underlying product certification (CE, regional safety marks) because the hardware design is theirs; the brand owner, however, owns the declaration of conformity and the market-placement responsibility under their own legal entity. This split should be written down before samples are built, not discovered at customs.

Conclusion

A custom wallbox charger project is best understood as four hand-offs, each with a clear input and output. The teams that move fastest are those that freeze the spec early, start tooling and certification in parallel, and book the pilot line slot before the sample is even validated. Get those three things right and a bespoke wallbox becomes a predictable, schedulable programme rather than an open-ended gamble.
